Materials：all kinds of corrugated paperboard(kraft and bleeched kraft、semi-coated board、honey comb panel）
Accuracy：Basic Definition 1200dpi or above, single-pass
Capacity：Up to 150m/min
PDF下載
視頻介紹

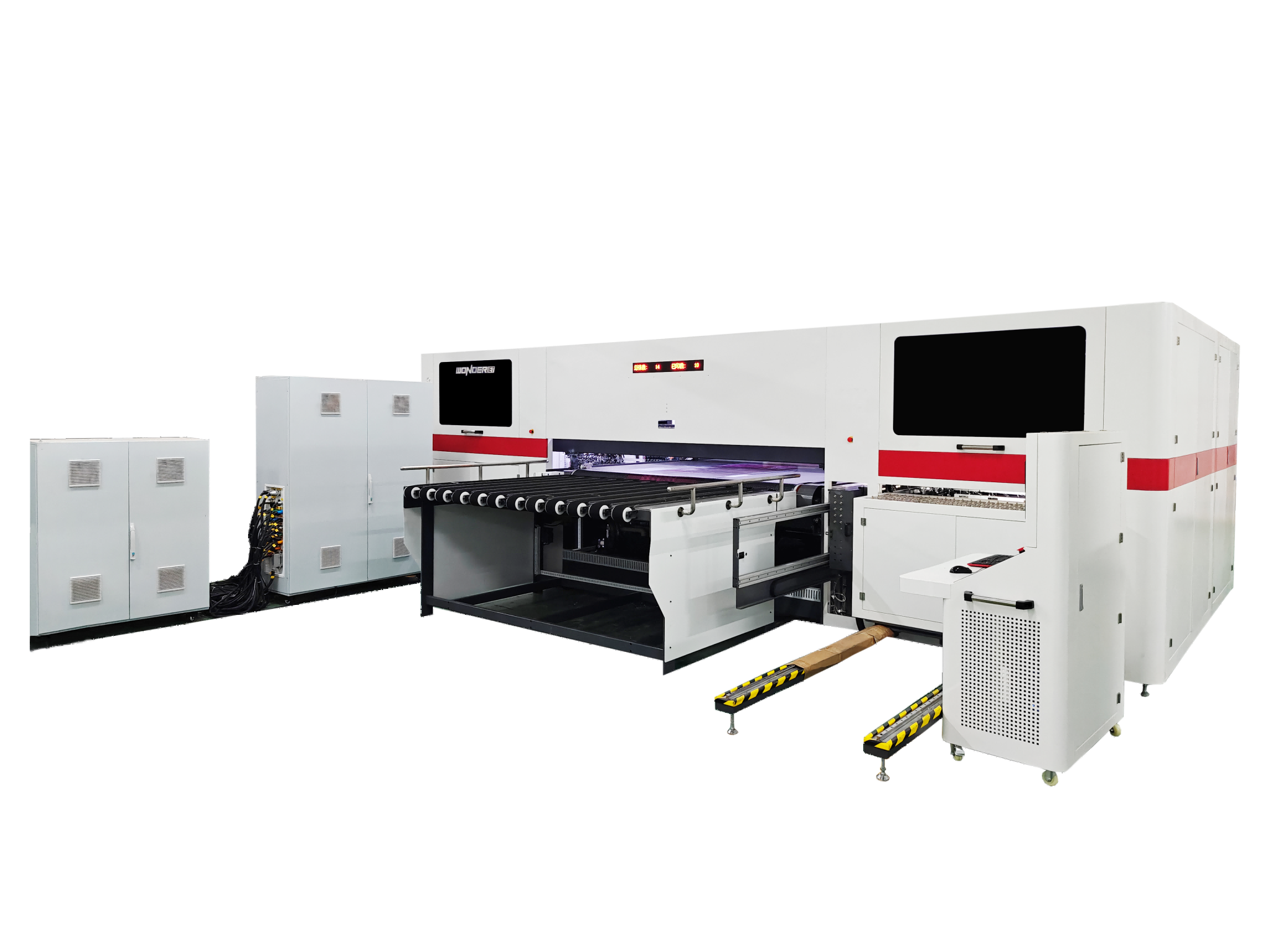

WDUV200 series UV corrugated high-speed digital printing machine, the high-quality printing effect makes the image more vivid and beautiful, the picture is more layered, and achieves high-quality printing that surpasses flexo printing and comparable to offset printing.The highest printing speed can be 150 m/s, one machine achieves the perfect combination of speed and precision, which can replace about 70% of traditional printing.
Printhead | Piezoelectric high-procision printhead |
Printhead quantity | Be ordered with printing width |
Ink type | Special UV curable ink |
Color model | Cyan,Magenta,Yellow,Black, + White |
Medium distance | 2mm-4mm |
Printing resolution | ≥1200*150 dpi |
Material format | Below 2500 mm * 2400 mm under auto feeding |
Printing format | 800-2500mm |
Drying speed | Dry once print out |
Working environment | 15oC-32oC Indoor，Humidity 40%-70% |
Ink supply | Automatic continuous ink supply |
Feeding mode | Automatic feeding |
Material thickness | 1.2mm-20mm |
Thermostat system | Thermostat system with patent |
Operate system | Professional RIP system,professional printing system,Windows 7 system with 32 bit operating system or above |
Rated power | About 18 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H 10940*7850*2490 (mm) |
Weight | Net wight:23000KG |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
