Materials：Corrugated cardboard, wood, plastic board, the hard materials which flat and ink can be attached,etc. Special materials such as ceramic tile, metal plate, acrylic plate some parts need to be replaced
UV special ink：Cyan,Magenta,Yellow,Black
PDF下載
視頻介紹

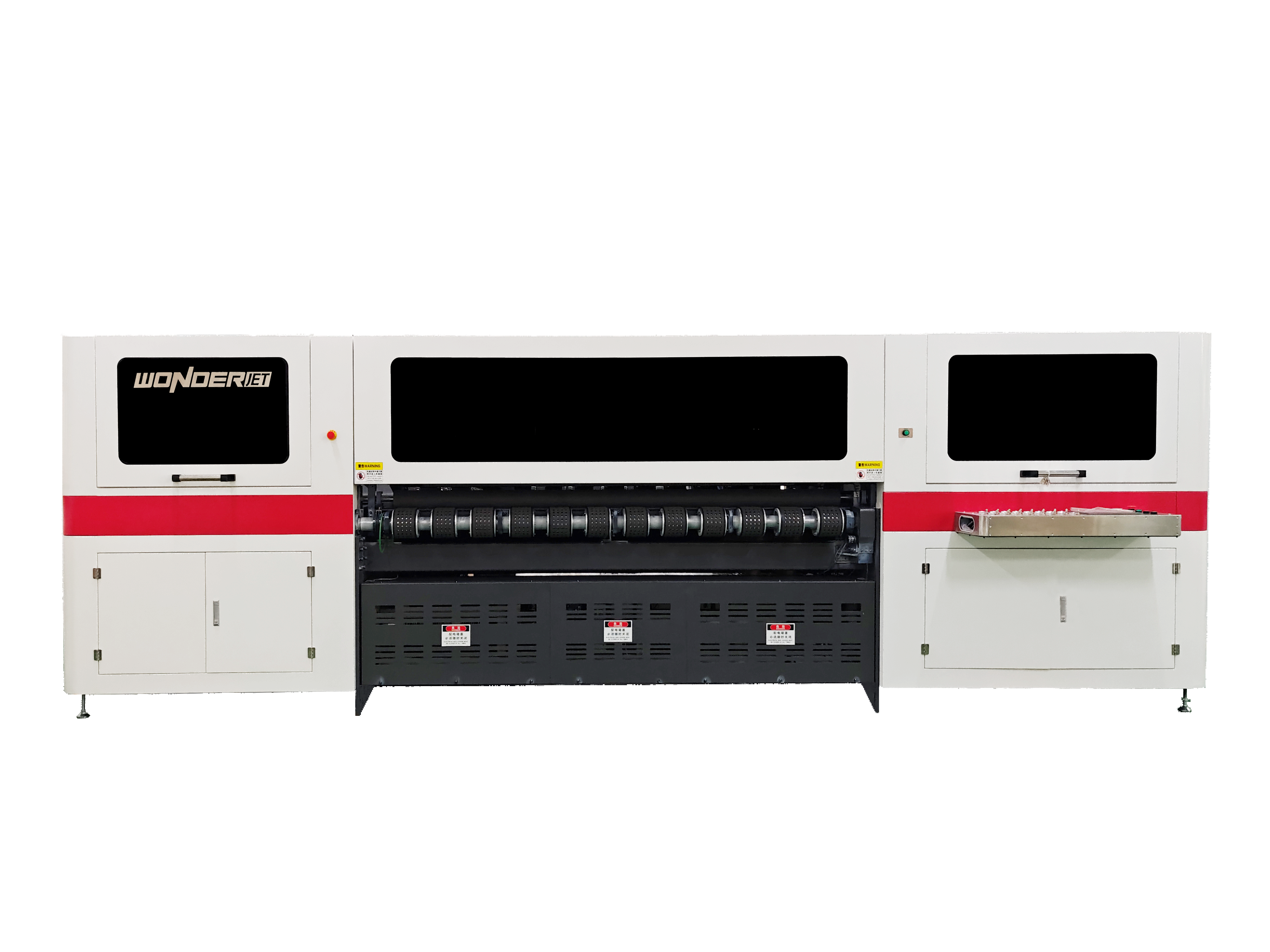

WDUV250-12A Muti Pass width format high quality digital UV inkjet printing machine, use heavy machine body, inkjet printing,special UV ink, vivid color and waterproof printing effect,CMYK color mode, max printing width 2500mm, length no limit, printing speed up to 600㎡/h with 300*600dpi, production efficiency around 1~600 PCS/hour, siutable for small and personalized orders which want high resolution and shiny color.
Article NO. | WDUV250-16A+ |
Printhead | Industrial-grade piezoelectric printhead |
Printhead quantity | 16 pieces |
Ink type | Special UV curable ink |
Color model | Cyan,Magenta,Yellow,Black |
Medium distance | 2mm-4mm |
Printing resolution | ≥360*600 dpi |
Printing efficiency | 300*600dpi: max 600㎡/h 300*600dpi: max 400㎡/h 300*600dpi: max 300㎡/h |
Media type | Hard materials such as: cardboard,wood,plastic,etc. Special materials such as tiles,metal plate,acrylic board,etc will need to change relevent parts |
Printing format | 2500mm |
Drying speed | Dry once print out |
Working environment | 15oC-32oC Indoor，Humidity 40%-70% |
Ink supply | Automatic continuous ink supply |
Feeding mode | Automatic leading edge feeding,suction feeding |
Material thickness | 1.5mm-35mm（max can be ordered to 50mm) |
Operate system | Professional RIP system,professional printing system,Win10/11 system with 64 bit operating system or above |
Power supply | About 18 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H：4850*6100*1751(mm) |
Weight | 5500KGS |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
